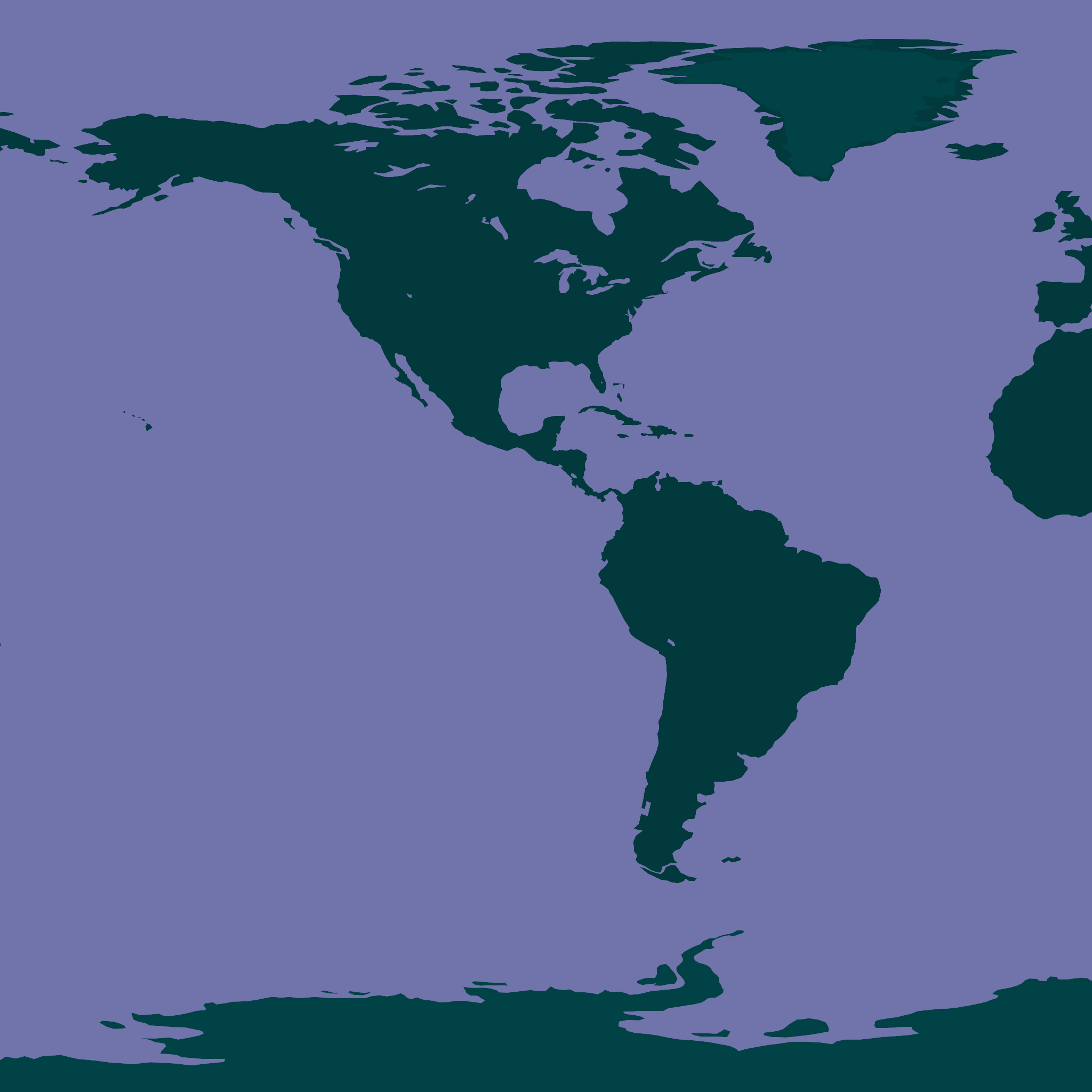

To make a high resolution GBIF map, first retrieve the base map tiles. This example will use WGS 84 projection (code 4326
), show the whole world at zoom level 0
(tiles 0/0/0
and 0/1/0
) and use gbif-classic
style. A list of projections and styles is on tile.gbif.org.
@4x
, this retrieves the highest available resolution.
Then download the occurrence density tiles. The projection and tile codes must match. The style is classic.poly
, with other parameters controlling the hexagons/squares/points and their size (bin=hex&hexPerTile=70
) and the search filter (taxonKey=2670513
, i.e. this moss).
Join and overlay the tiles in a graphics program. This example uses the command-line tool ImageMagick, but any graphics editor capable of perfectly aligning the images will work:
# Retrieve the base map layer curl -o base-west.png 'https://tile.gbif.org/4326/omt/0/0/0@4x.png?style=gbif-classic&srs=EPSG:4326' curl -o base-east.png 'https://tile.gbif.org/4326/omt/0/1/0@4x.png?style=gbif-classic&srs=EPSG:4326' # Retrieve the occurrence density layer curl -o occ-west.png 'https://api.gbif.org/v2/map/occurrence/density/0/0/0@4x.png?style=classic.poly&bin=hex&hexPerTile=70&taxonKey=2670513&srs=EPSG:4326' curl -o occ-east.png 'https://api.gbif.org/v2/map/occurrence/density/0/1/0@4x.png?style=classic.poly&bin=hex&hexPerTile=70&taxonKey=2670513&srs=EPSG:4326' # Join the western and eastern hemispheres together montage base-west.png base-east.png -geometry +0+0 -tile 2x1 base.png montage occ-west.png occ-east.png -geometry +0+0 -tile 2x1 -background transparent occ.png # Overlay the occurrence density tile onto the base map tile convert base.png occ.png -gravity center -composite combined.png
For a web page, the whole operation can be done with HTML and some styling — although cropping the view would be more complicated. View the source of this page to see the code.
